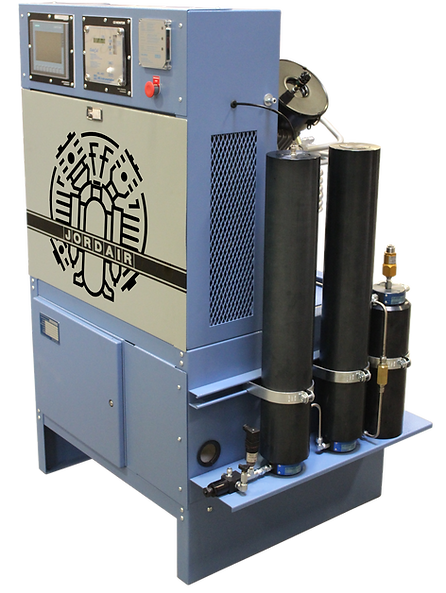

The FIRE-KAT compressor system features a single Bauer compressor block installed within a semi-enclosed frame. The compressor system provides a service friendly and technically advanced design with active customer interface.
All FIRE-KAT compressors are supplied with the Siemens Logo 8 PLC with a 6” panel mounted HMI screen. Adjacent to the PLC screen is the panel mounted CSA required CO monitor, Securus Moisture Monitor and ESD button. A high air temperature RTD with shut down & alarm as well as inter-stage and final pressure relief valves protect the compressor and its components. Oil pressure is monitored by a transmitter with an alarm and display.
Final pressure is limited by the final pressure transmitter setting. Jordair compressors are designed to automatically drain every 15 minutes into a silent collection system. All FIRE-KAT units Include nationally certified 7300 PSIG filter systems for added safety and an extended component life of 35 operating years.
You can find the full scope of technical data in the downloadable brochure.
